Multi row back sealing liquid packaging

Product model：CY300BY/CY600BY/CY900BY

The automatic multi row back sealing liquid packaging machine is applicable to the automatic soft packaging
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc

We can help you find the goods you want by phone

Consult immediately 18676947539
Machine parameters
    Model CY300BY CY600BY CY900BY
    Lanes number 2-6 lanes 3-12 lanes 4-18 lane
Capacity 25--40 / Max.25-40cycle/min/lane
Bag size L 50-180mm  W:17-70mm L::50-180mm  W:17-95mm L::50-180mm  W:17-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1. Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg
Machine details

Finished product transportation

Electrostatic device 2

an electric appliance

Electric box 1

Transverse sealing device

piston

Laser hit 1

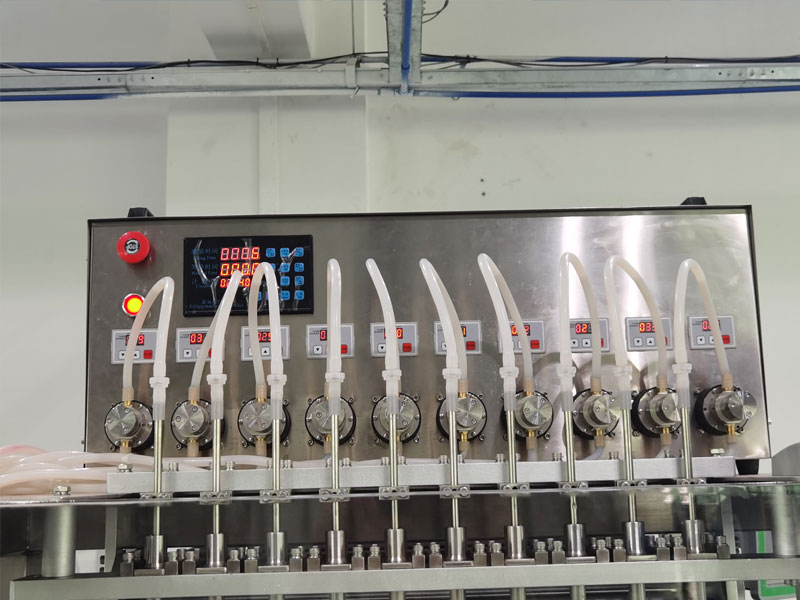

Bucket and piston pump

Blanking

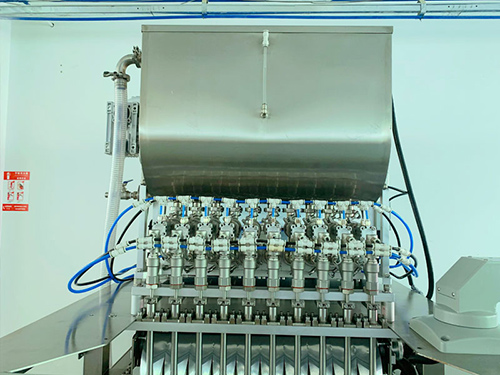

Liquid bucket

Longitudinal sealing device

Machine video introduction

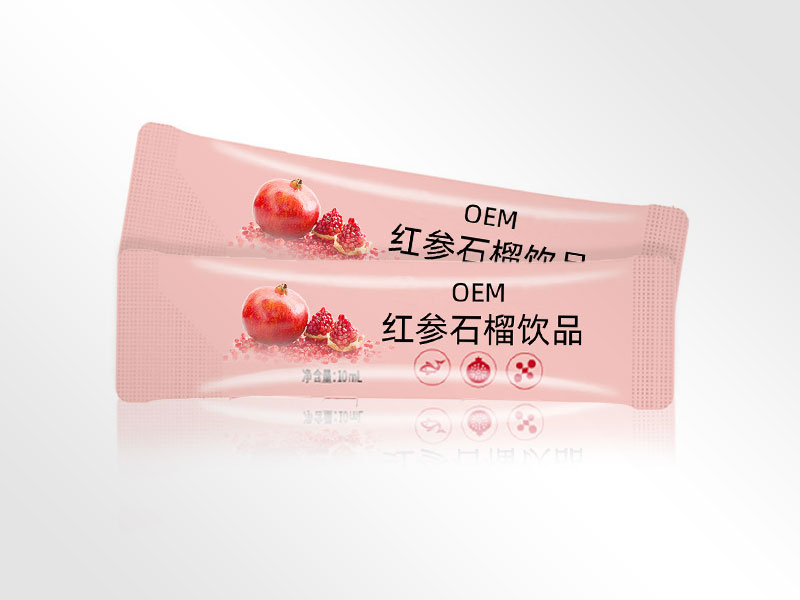

Effect of packaging sample bag
